Material handling equipment
SIJ Ravne Systems produce products for different fields of assembled equipment on customer's request, from steel mills, hot and cold rolling mills, aluminium mills, forging shops, power and conveying facilities, etc.
Handling equipment is critical in engineering and manufacturing sectors, where efficient movement and management of materials are essential for operational success. This equipment encompasses a wide range of devices designed to transport, lift, and manage materials within various industrial settings.
By investing in the right equipment, businesses can enhance their operational efficiency, improve safety, and achieve significant cost savings. Whether it's cranes, hoists, conveyors, or robotic systems, choosing the right handling solutions ensures that materials are managed effectively, contributing to the success of industrial operations.
Material handling equipment catalogue
Head of Sales program Maintenance and Machinebuilding
SIMATEC products by SIJ Ravne Systems

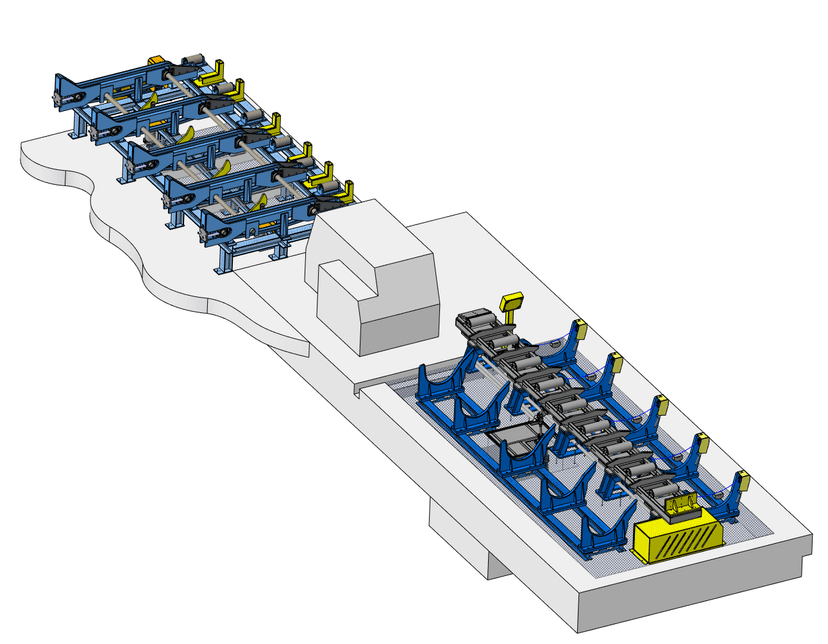

Loading and undloading devices for straightening machine
- We offer customizeble solutions for loading and unloading for round or flat product for straightening machines
- From diameter ø30mm to ø100mm roudn product
- FLat product from 100mm
- Max capacity of tables 5t
- Lenght of tables from 2000mm to 6000mm
Automatic forging tongs
- Capacity from 1t to 40t
- Suitabble for round or squared ingots
- Swivel grip tips
- All tongs are individually designed and calculated to specific customer requirements
- Manufactured in accordance with EN ISO safety standards
- Quick access to wear components
- Minimum inherent weight
- Long working life span

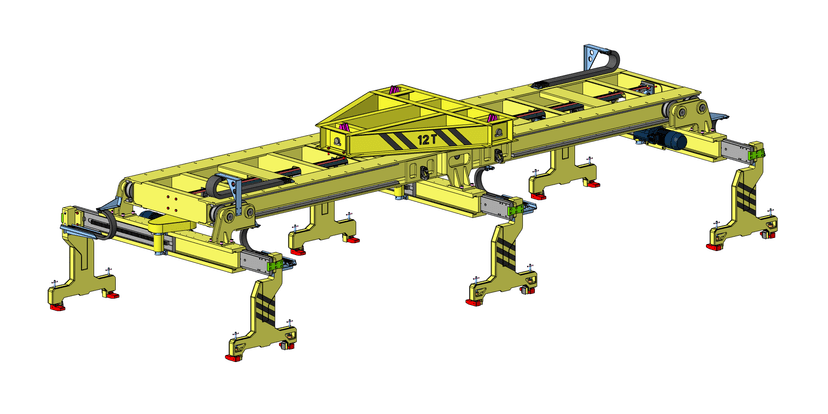

Slab grippers
- The slab gripper is able to lift one or several slabls simultaneously
- Electro mechanical end limit switch for min/max opening of tong
- Lateral adjustment of outer lifting arms
- All grippers are individually designed and calculated
- Manufactured in accordance with EN ISO safety standards
- Quick access to wear components
- Minimum inherent weight
- Long working life span
- Capacity up to 25t
Ladle beams
- The ladle beam is designed to carry single ladle
- Its design for heavy duty applications in steel manufacturing
- All ladle beams are individually designed and calculated to specific customer requirements
- Suspensions are customizable on individual customer demands
- Manufactured in accordance with EN ISO safety standards
- Quick access to wear components
- Minimum inherent weight
- Long working life span
- Can be supplied with custom storage stand
- Capacity from 5t to 30t
Transfer ladle
- The transfer ladles are used to tranfer a certain capacity of hot metal from furnace to pouring unit
- Capacity from 30t to 90t
- All ladles are disigned and calculated on spoecific customer demands
- Manufactured in accordance with EN ISO safety standards
- Quick access to wear components
- Minimum inherent weight
- Long working life span
Ladle transfer car
- Ladle tranfer cars are used to carry hot metal ladles for transport within the plant.
- Customized load capacity up to 200t
- Optinal safety systems
- Optional control systems ( radio control / remote control)
- Optional power unit
- Traveling speed 0-20 m/min
- Manufactured in accordance with EN ISO safety standards
- Quick access to wear components
- Minimum inherent weight
- Long working life span
Transfer trolley
- Tranfer trolleys are an simple and elegent solution for moving goods across different parts of the factory.
- For indoor or outdoor usage
- Customized loading surface for specific customer demands
- Capacity from 1t to 50t
- Traveling on standard or custom rail tracks
- Optional control system ( radio control, remote control)
- Optional safety systems ( laser scaners, safety wires, LED lights, sound accustics, buffer)
- Customized system ( lifting, tilting weighing)
- Manufactured in accordance with EN ISO safety standards
- Quick access to wear components
- Long working life span
Transport system for vacuum furnace
Vibratory furnace charger
Automated transport system for aluminum slabs, etc.
Knowledge and rich experience in metallurgical, mechanical engineering, transport, power supply and mining industries combined with the knowledge of materials and technologies, and adequate equipment for production enable us to manufacture high quality products and equipment.
